simple_led_routed
Assembly readySimple LED - Hello World Minimal LED circuit 5V input, 330 ohm resistor, LED
00-simple-led
Manufacturing readiness
Checked .
Scope: PCB fabrication and assembly files.
Current evidence passes the assembly release checks; this does not establish tested hardware performance.
- Connectivity and design checks: passed — 0 electrical/manufacturing errors; meta-checks PASSED; warning counts: none.
- Native design rules (DRC): passed — 0 error-level findings after zone refill; warning counts: none.
- Manufacturing artifacts: passed — Fresh full manufacturing bundle, SHA256 integrity and source ZIP provenance verified.
- Bill of materials: passed — Supplier identities reviewed; SMT CPL excludes manual through-hole components.
Passed: this check passed for the recorded files. Failed: this check found a problem. Not run: no result was established. Unlisted checks have no reported result.

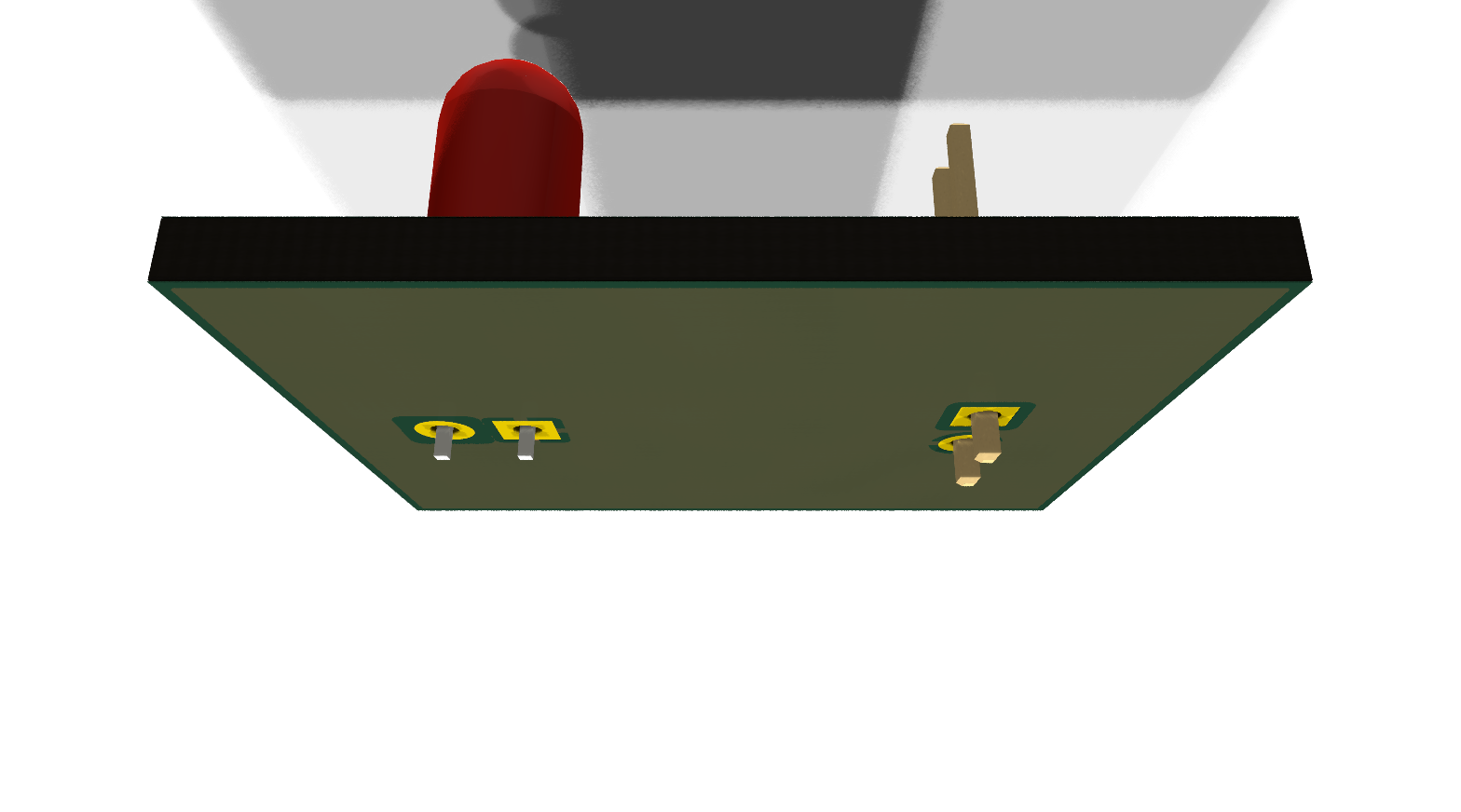

Renders
Interactive Viewer
Loading interactive view…
Metrics
| Build Status | Assembly ready |
|---|---|
| Nets routed | 100.0% |
| DRC violations | 0 |
| Layers | 2 |
| Board Size | 25 × 20 mm |
| Parts | 3 |
| Cost (per board) | $2.55 |
| Batch Qty | 5 boards |
| Batch Total | $12.73 |
| Data Generated | 2026-09-10T07:05:00.837414+00:00 |
Downloads
- Full manufacturing package (ZIP)
- KiCad project (ZIP)
- Gerber fabrication files (ZIP)
- Fabrication report (PDF)
- Bill of materials (CSV)
- Component placement (CSV)
- Schematic (PDF)
- Front assembly drawing (PDF)
- Back assembly drawing (PDF)
- Manufacturing instructions (TXT)
- Procurement review (Markdown)
- Artifact manifest (JSON)
- Electrical and manufacturing checks (JSON)
- KiCad DRC report (JSON)
