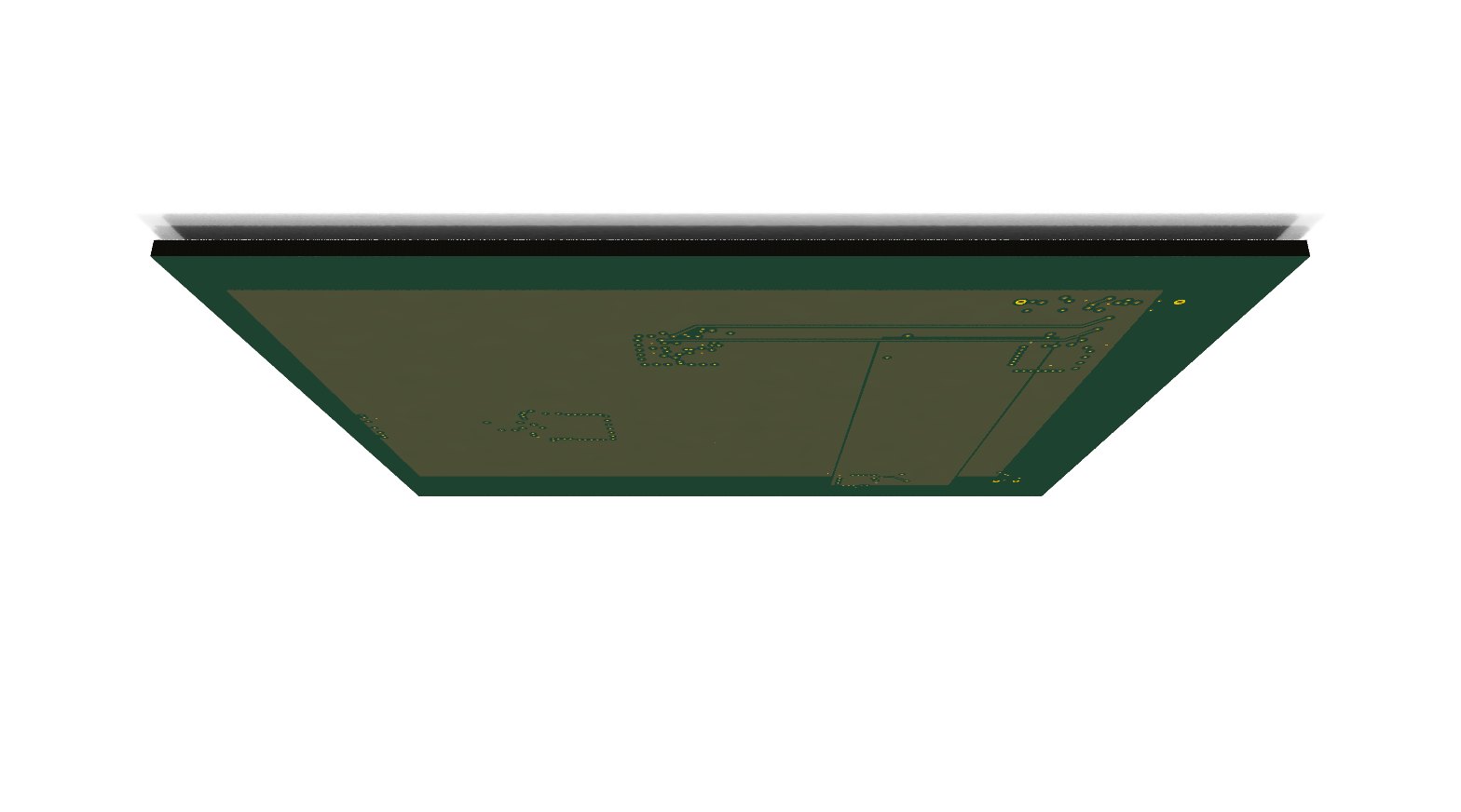

diffpair_test_routed

Current evidence passes the assembly release checks; this does not establish tested hardware performance.

• Connectivity and design checks: passed — Zero errors/warnings; ERC, label/copper LVS and manifest pass; all four LVDS pair constraints pass.
• Native design rules (DRC): passed — Fresh native DRC: zero violations/opens after saved zone refill; independent repeated refill has identical copper polygons. All tracks are orthogonal or exact 45 degrees.
• Manufacturing artifacts: passed — Regenerated Gerbers, drawings and renders; project/source ZIP byte provenance and complete SHA256 manifest verified after fresh full checks.
• Bill of materials: passed — Reviewed supplier identities;33 SMT placements and three explicitly sourced manual Samtec headers. Auto-matching disabled. Reviewed BOM/CPL contents unchanged and compared against the prior audited package.
• drill pad overlap: passed — Zero actual drill/SMT-pad overlaps; four repaired positions reproduced from source. Standard through-vias only; signals confined to F.Cu/B.Cu and reference planes reserved.

Passed: this check passed for the recorded files. Failed: this check found a problem. Not run: no result was established. Unlisted checks have no reported result.
