softstart_routed

Ready

Generator Soft-Start - Supercapacitor Power Assist 120VAC soft-start for 8000 BTU AC on Honda EU1000i STM32G031K8T6 MCU, 2x30S supercap banks, back-to-back FETs + UCC27211 drivers

softstart

Renders

2D Front render of softstart_routed — 2D Front

2D Back render of softstart_routed — 2D Back

3D Front render of softstart_routed — 3D Front

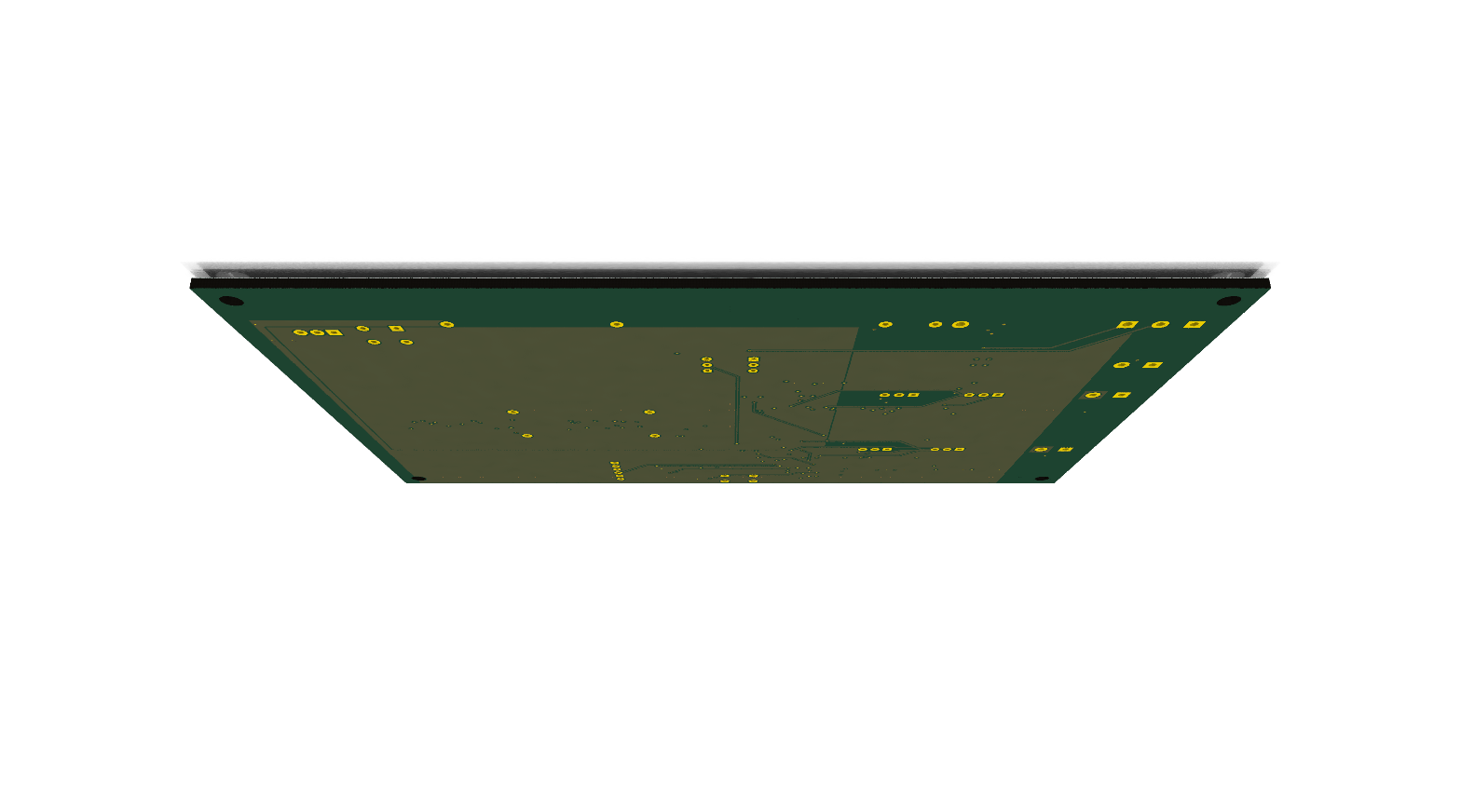

3D Back render of softstart_routed — 3D Back

Interactive Viewer

Loading interactive view…

Metrics

Build Status	Ready
Nets Routed	100.0%
DRC Violations	0
Layers	4
Board Size	150 × 100 mm
Parts	80
Cost (per board)	$10.73
Batch Qty	5 boards
Batch Total	$53.65
Data Generated	2026-07-09T21:57:30.283537+00:00
