voltage_divider_routed
Assembly readyVoltage Divider Test Simple 2-resistor voltage divider 5V -> 2.5V (10k/10k)
01-voltage-divider
Manufacturing readiness
Checked .
Scope: PCB fabrication and assembly files.
Current evidence passes the assembly release checks; this does not establish tested hardware performance.
- Connectivity and design checks: passed — 0 electrical/manufacturing errors; meta-checks PASSED; warning counts: none.
- Native design rules (DRC): passed — 0 error-level findings after zone refill; warning counts: none.
- Manufacturing artifacts: passed — Fresh full manufacturing bundle, SHA256 integrity and source ZIP provenance verified.
- Bill of materials: passed — Supplier identities reviewed; SMT CPL excludes manual through-hole components.
Passed: this check passed for the recorded files. Failed: this check found a problem. Not run: no result was established. Unlisted checks have no reported result.

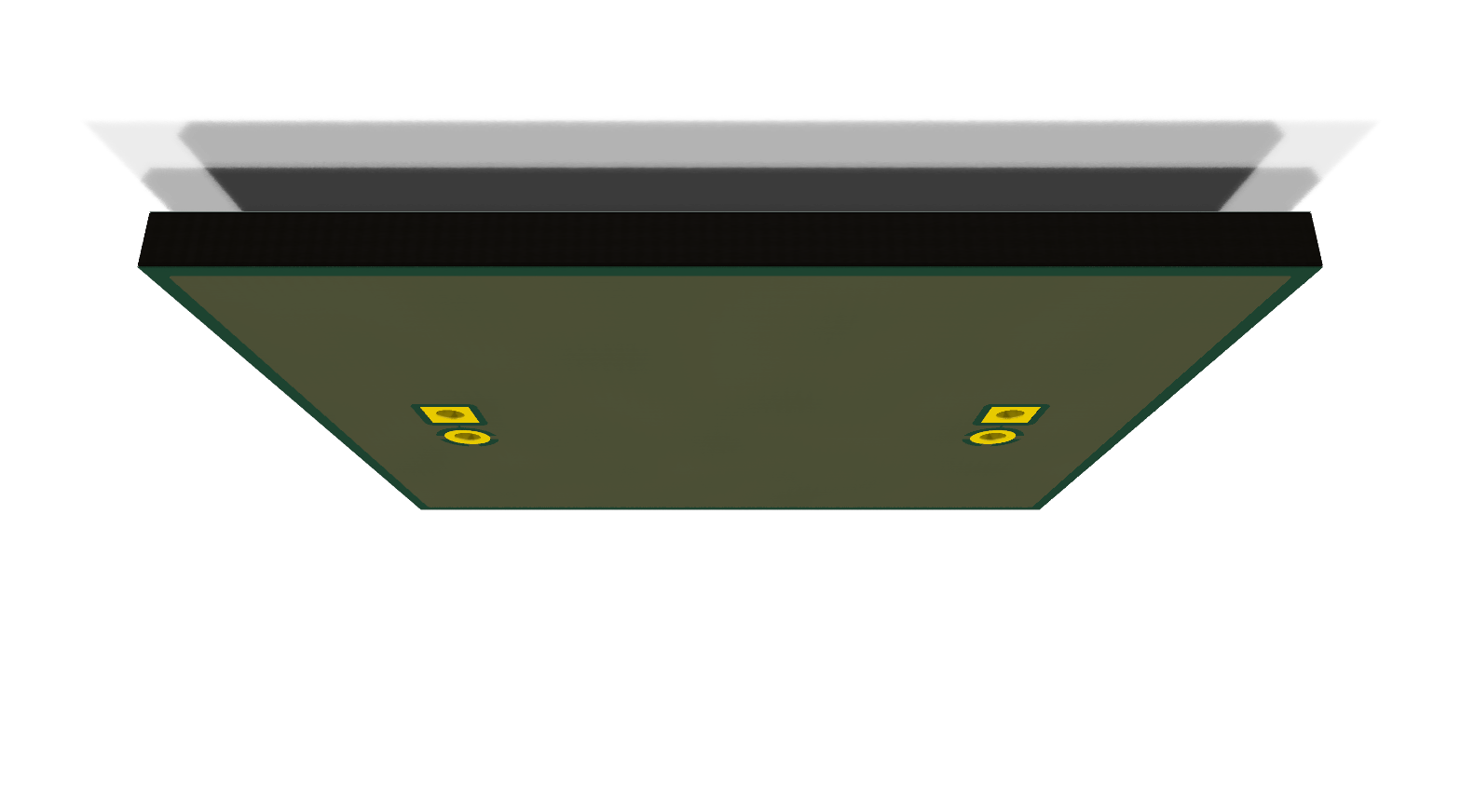

Renders
Interactive Viewer
Loading interactive view…
Metrics
| Build Status | Assembly ready |
|---|---|
| Nets routed | 100.0% |
| DRC violations | 0 |
| Layers | 2 |
| Board Size | 30 × 25 mm |
| Parts | 4 |
| Cost (per board) | $2.69 |
| Batch Qty | 5 boards |
| Batch Total | $13.44 |
| Data Generated | 2026-09-10T07:05:15.642258+00:00 |
